【PM-344-WF】WIFI Connection to your Computer
Currently, only computers with Windows and Mac systems support WIFI connection, while Linux and Chrome OS can use USB cables to connect and print.

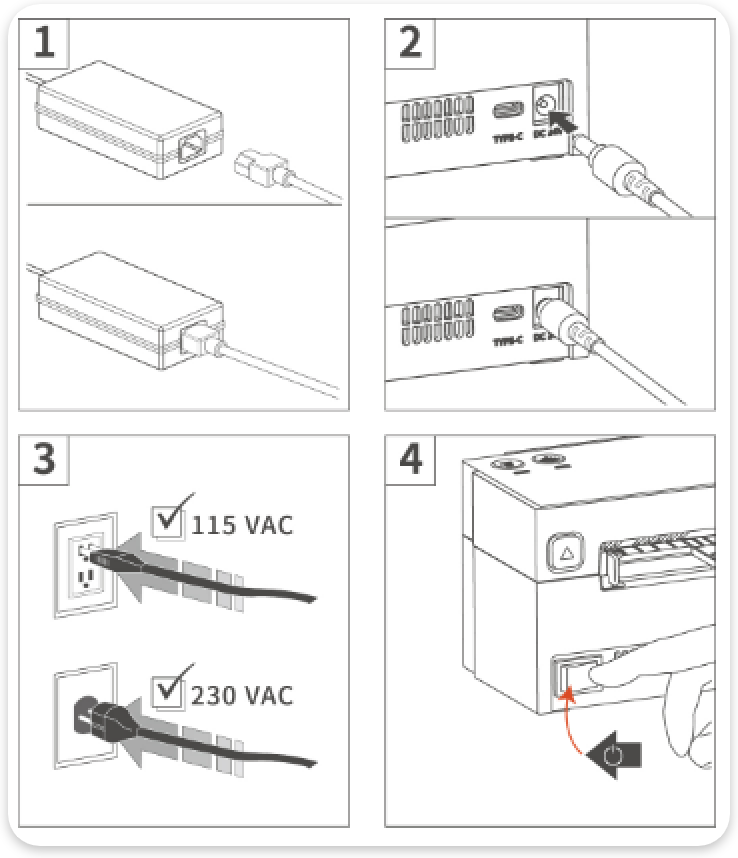

1.Connect to power
Please connect the power adapter and switch on the printer.
2.Place the printing paper

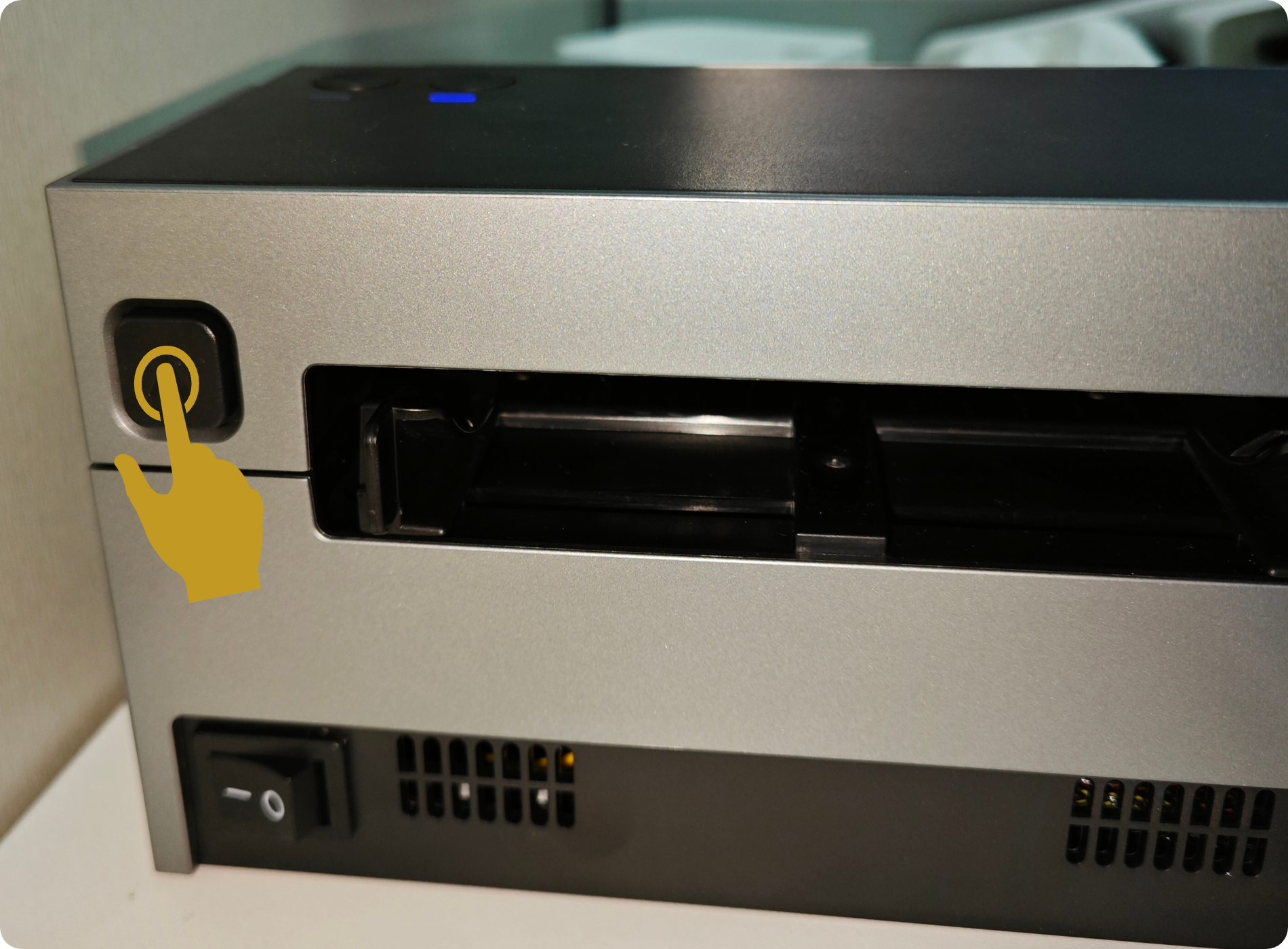

2.1 Press the cover opening button and lift the top cover.

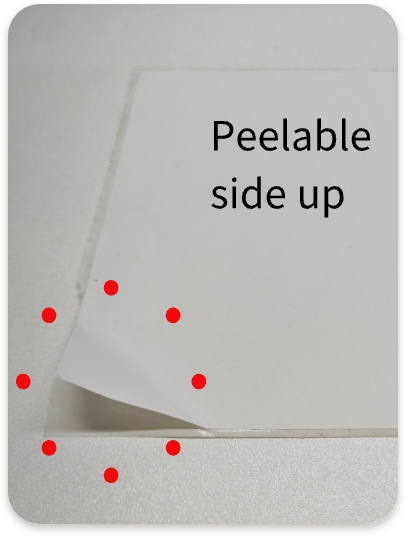

2.2 Place the printing paper with the printing side facing up

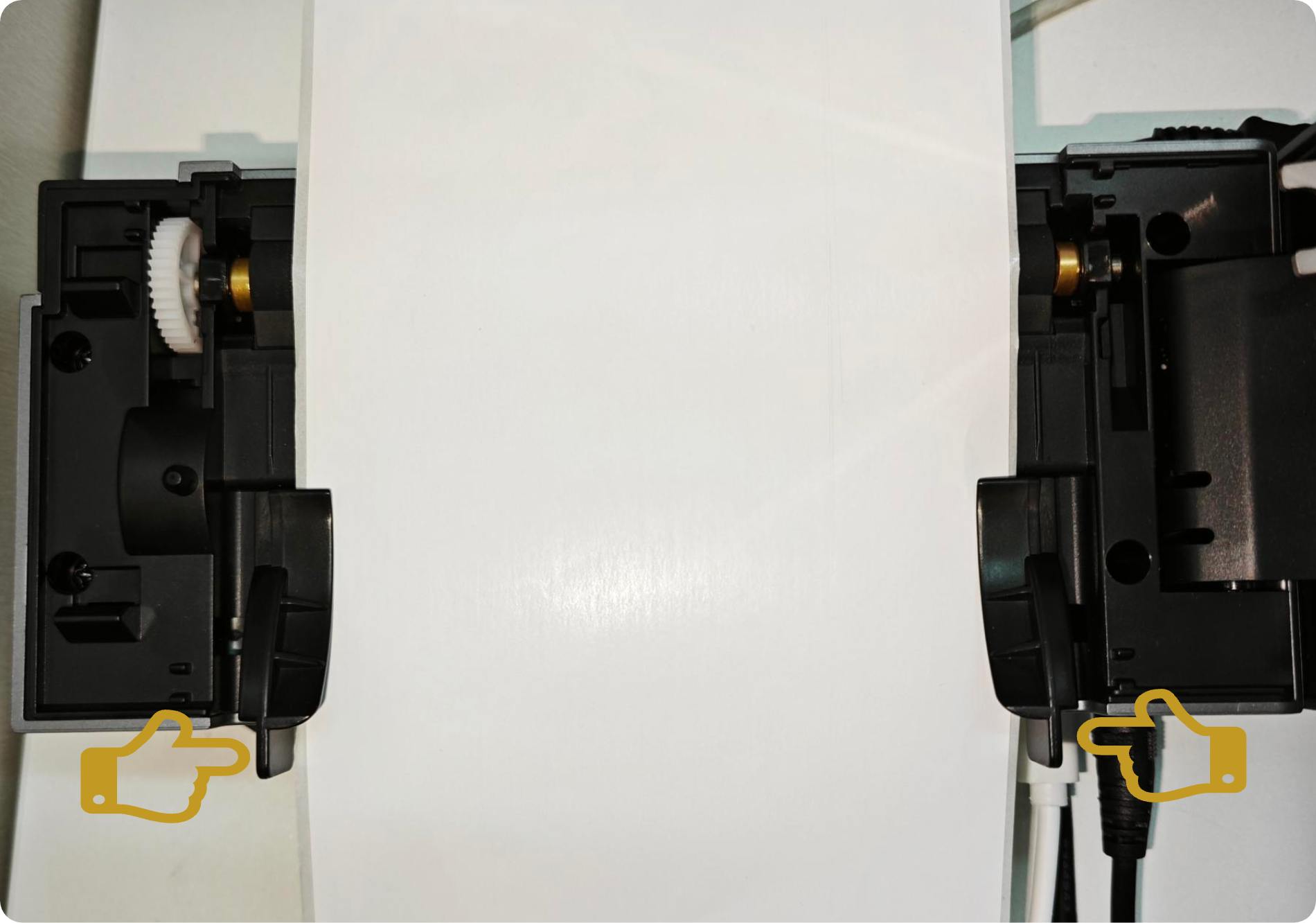

2.3 Use both hands to move the limit clip of the printing paper so that the printing paper can pass smoothly without shifting left or right.
2.4 Close the top cover:
There will be a crisp click sound when it is closed successfully.
3.Connecting to a computer

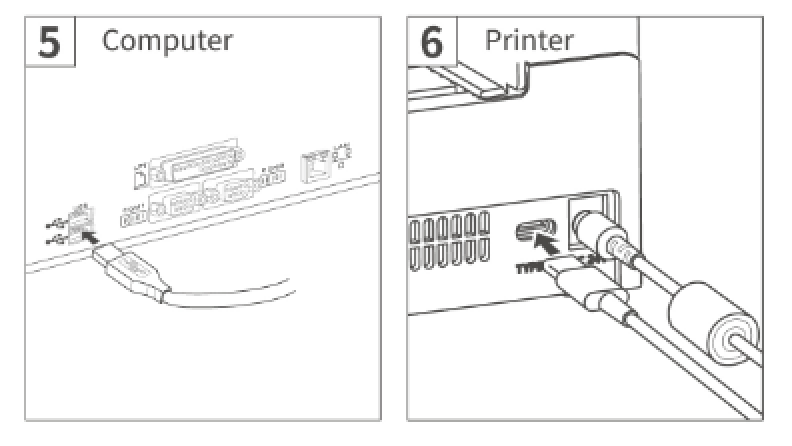

Use the included USB-C to USB-A cable to connect the printer and computer.
4. Install the WIFI printer driver
A. Download the WIFI driver setting tool from the website

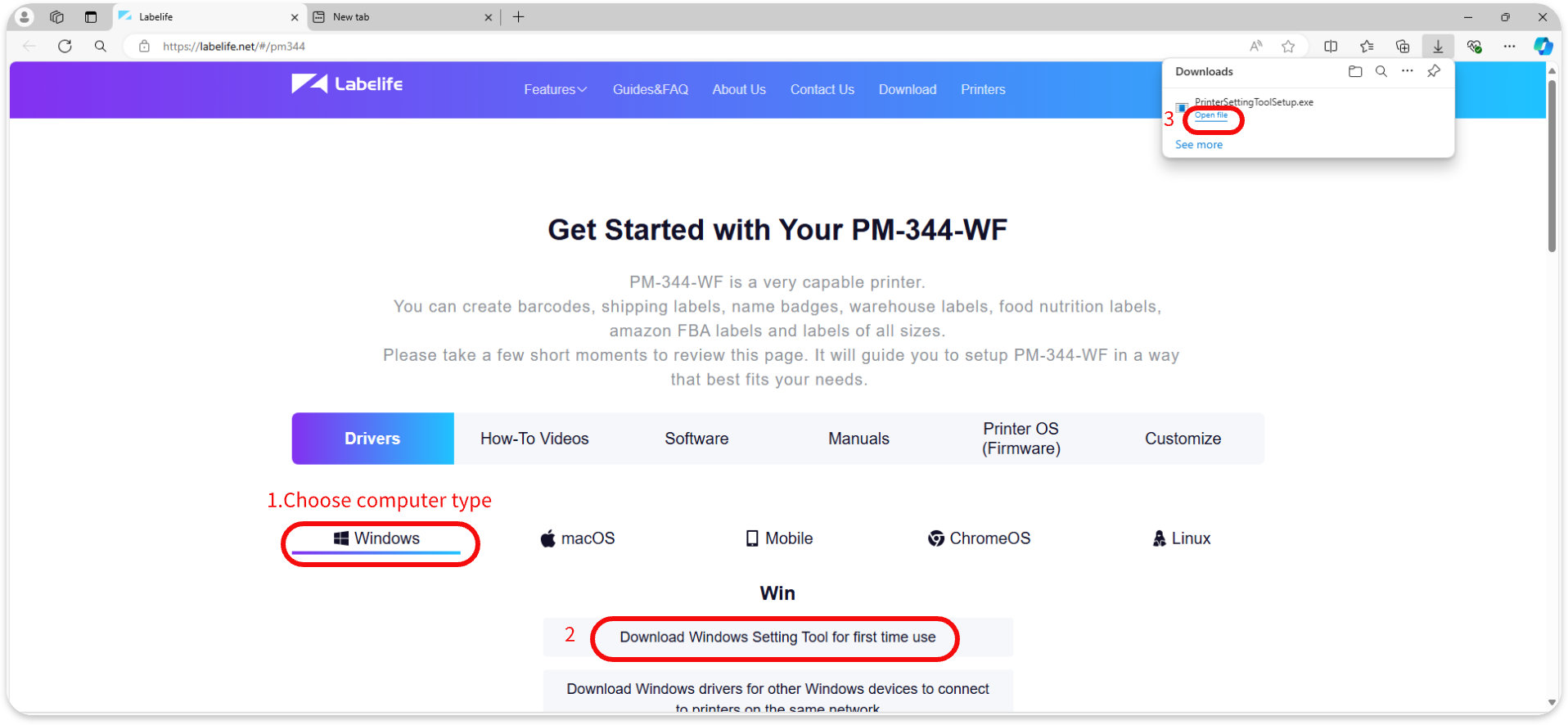

4.1. Download the WIFI driver setting tool :

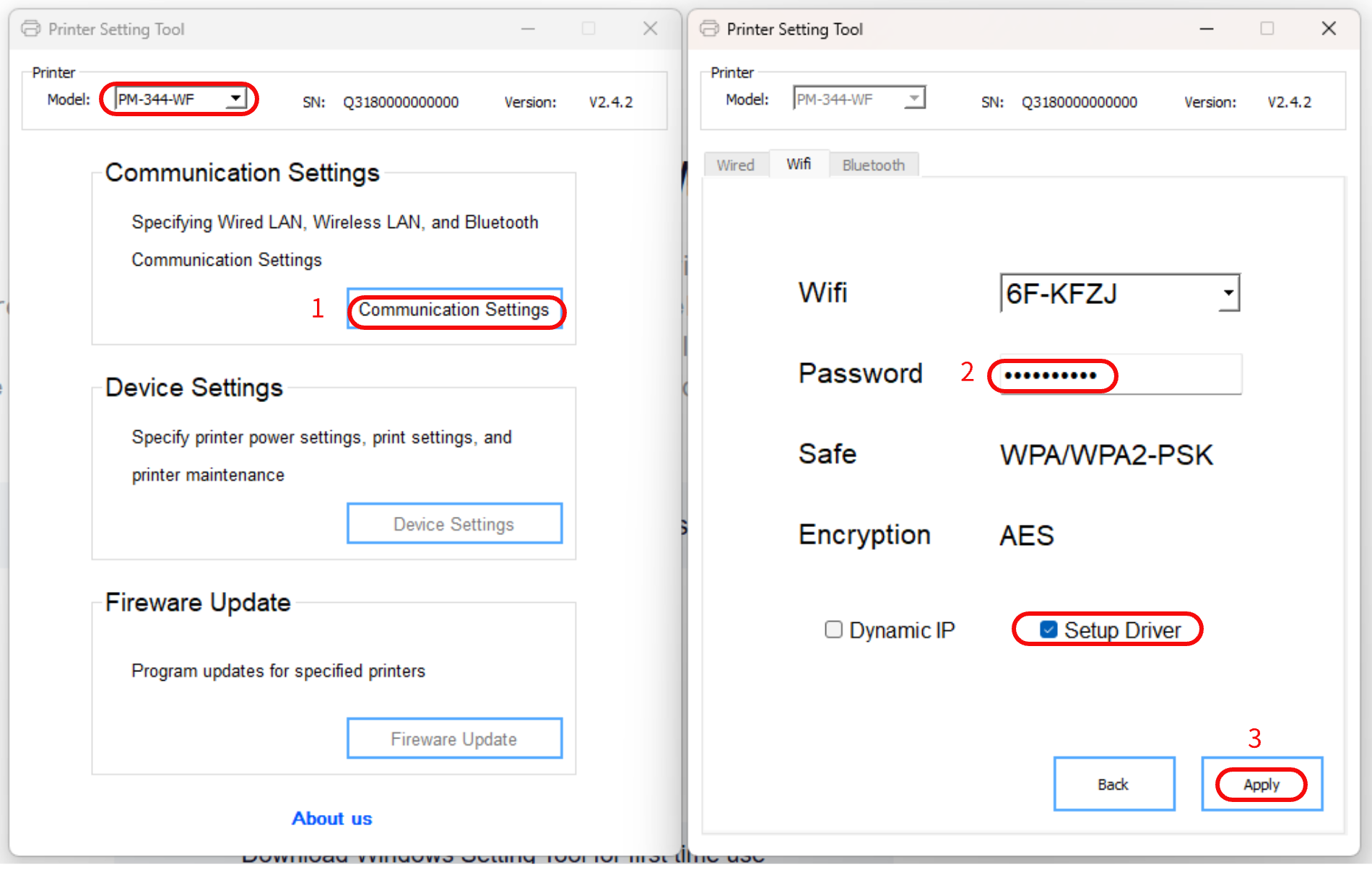

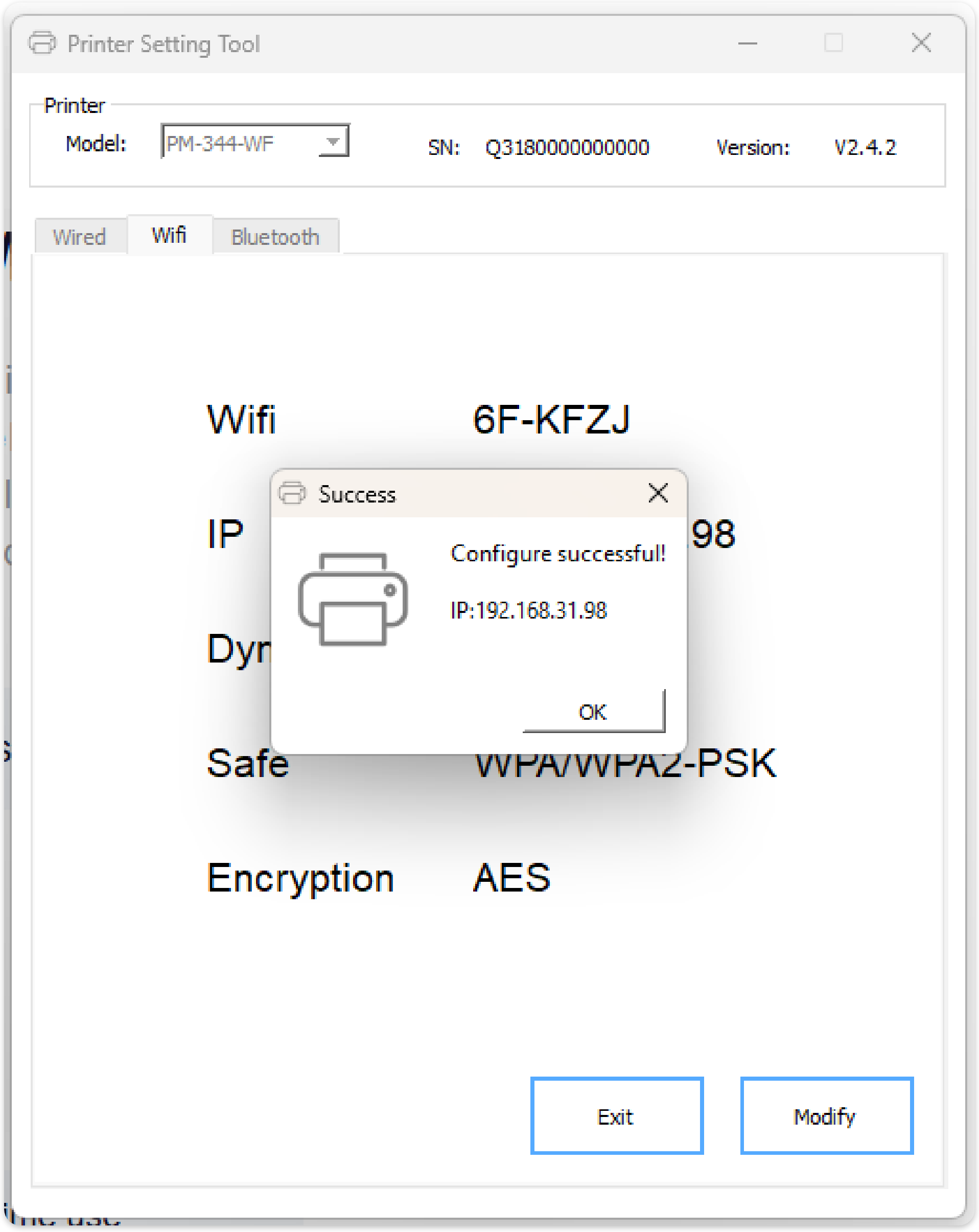

4.2 Fill in the WIFI password according to the tool instructions. The tool will automatically assign an IP address to the printer and install the WIFI printer driver.

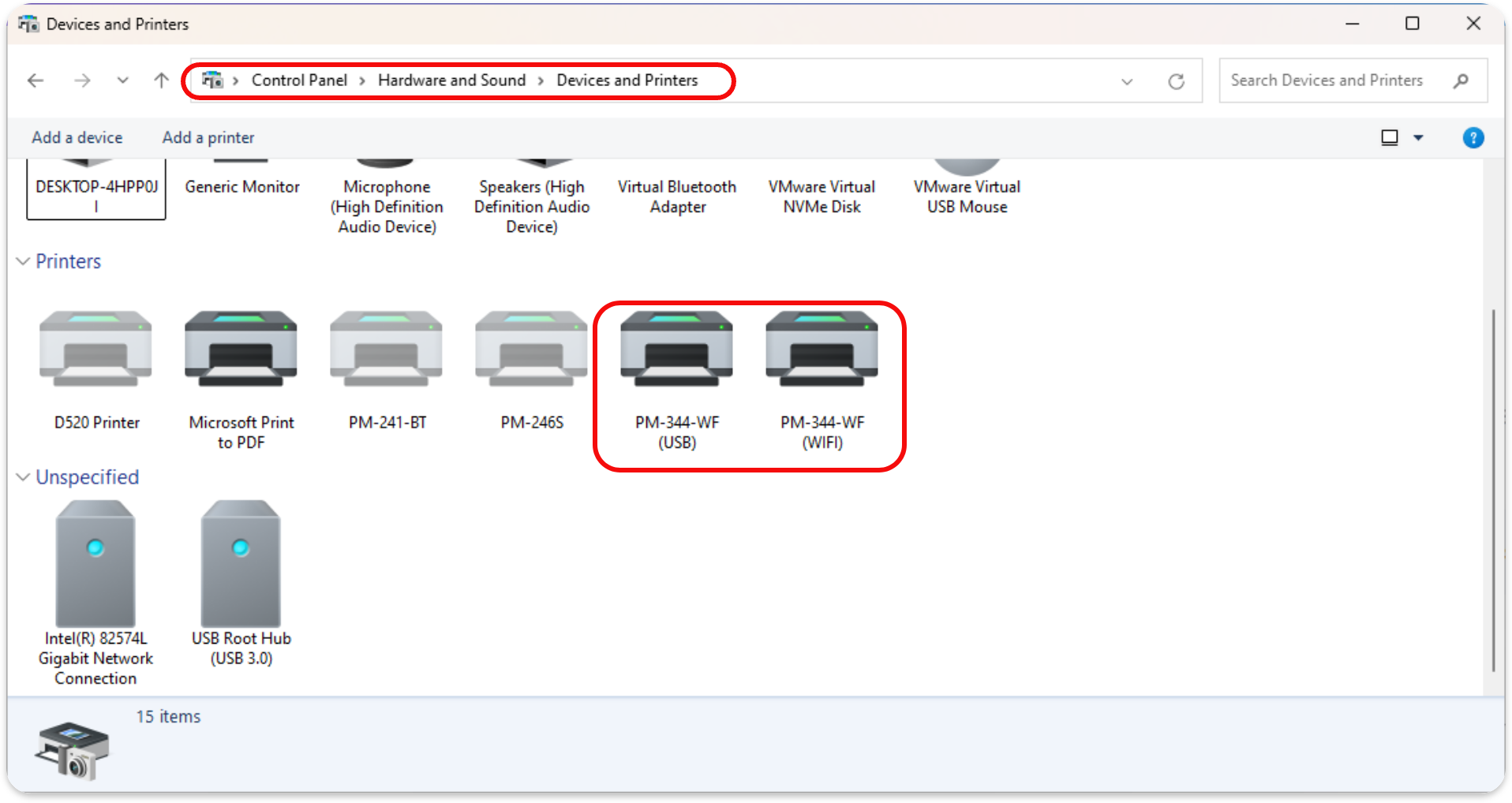

4.3 You can use this path to check whether the WIFI driver is installed successfully：
Control Panel\Hardware and Sound\Devices and Printers
The methods for installing the WIFI driver on Windows and Mac are similar, so only the graphic installation process for Windows is shown above.
Please refer to the video of the entire operation process:
B. Download the WIFI driver setting tool from the Labelife（PC）
1.Download Labelelife according to your computer operating system:
2.Please refer to the following video to connect Labelelife to your printer:
Note: Before using WiFi connection, please use the USB data cable included in the package to connect the computer and printer, and automatically assign an IP address for the printer by configuring the network tool. Please refer to the video operation for specific details.
