How to use labelife（PC）

How to use labelife（PC）

BUSINESS PRINTER: M110, M120, M200, M221, M220

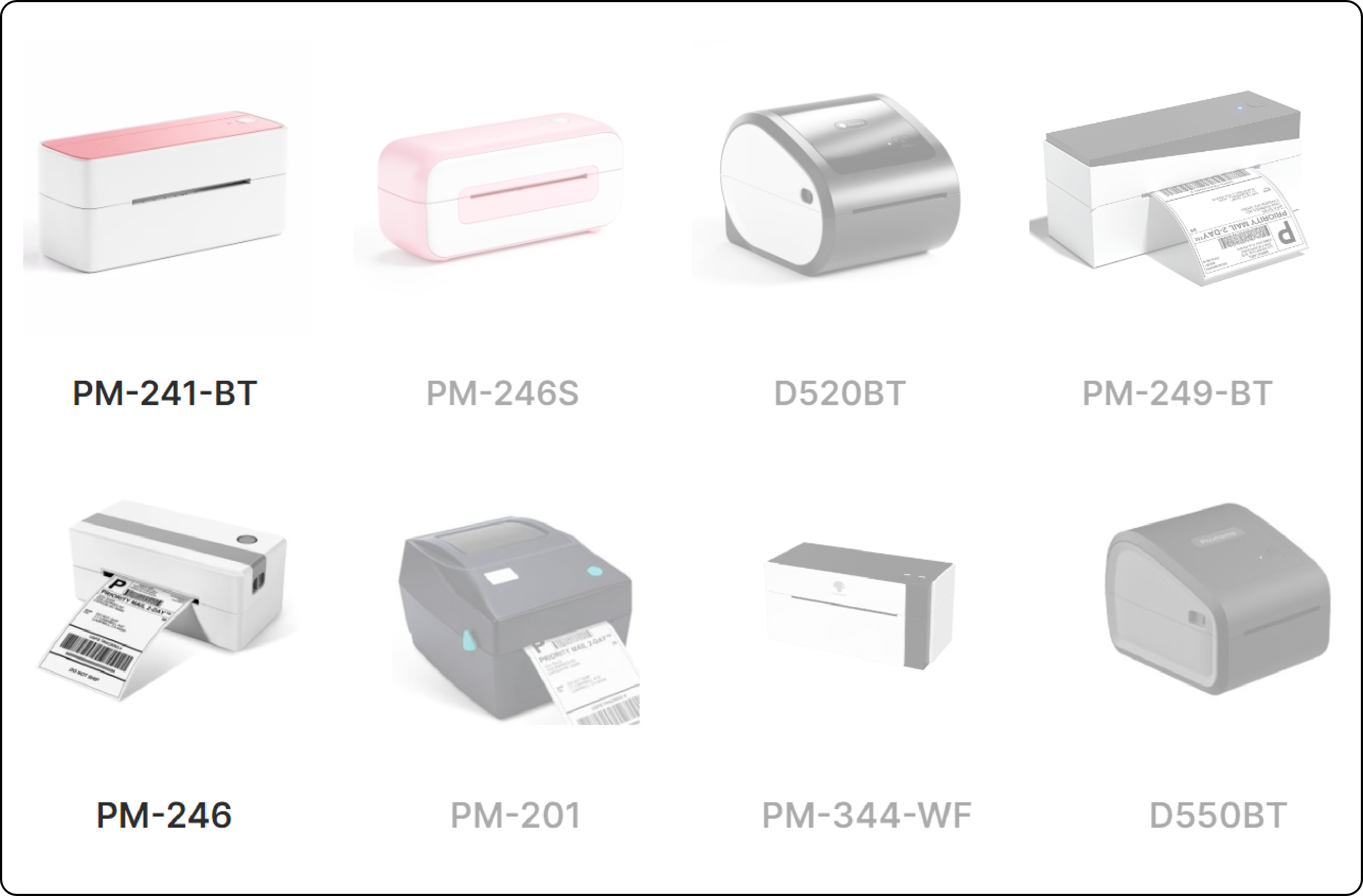

SHIPPING LABEL PRINTER: PM-241-BT, PM-246S,PM-246,
PM-201, PM-344-WF, D520-BT, PM-245-BT, PM-249-BT

Overview of applicable printers

BUSINESS PRINTER
Business Printer are compatible with the Print Master(App), Labelife( Windows, Mac ) and Direct Print(Windows, Mac).


SHIPPING LABEL PRINTER
Business Printer are compatible with the Labelife(App), Labelife( Windows, Mac ) and Direct Print(Windows, Mac).


Download & Connect

Please check the links below for more details on how to connect.
Mac:  Click here to jump

How to create a new label

Step1:  Open Labelife, Go to the ahome page and connect to the printer.
Step2: confirm your label paper style, fill in the size
Step3: Designing your labels

Operation interface explanation

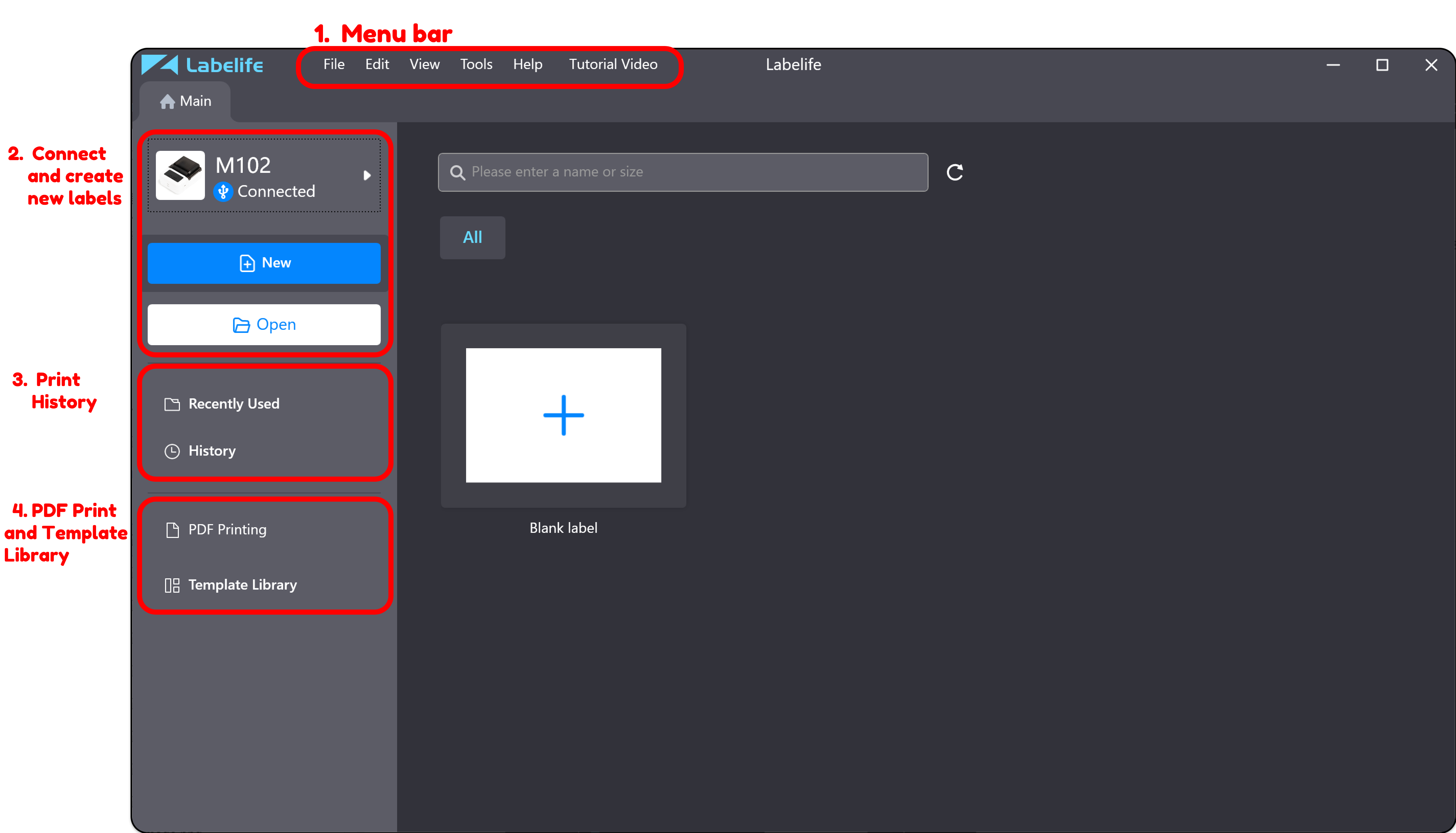

Home Page


  1. Menu bar:   There are seven options for recalling files, modifying edit page diagrams and viewing tutorials on how to use the software, and more.
  2. Connect and create a new labels:  Here you can manage the printers you have and create a new label.
  3. Print History: Here's for reviewing what you've printed before.

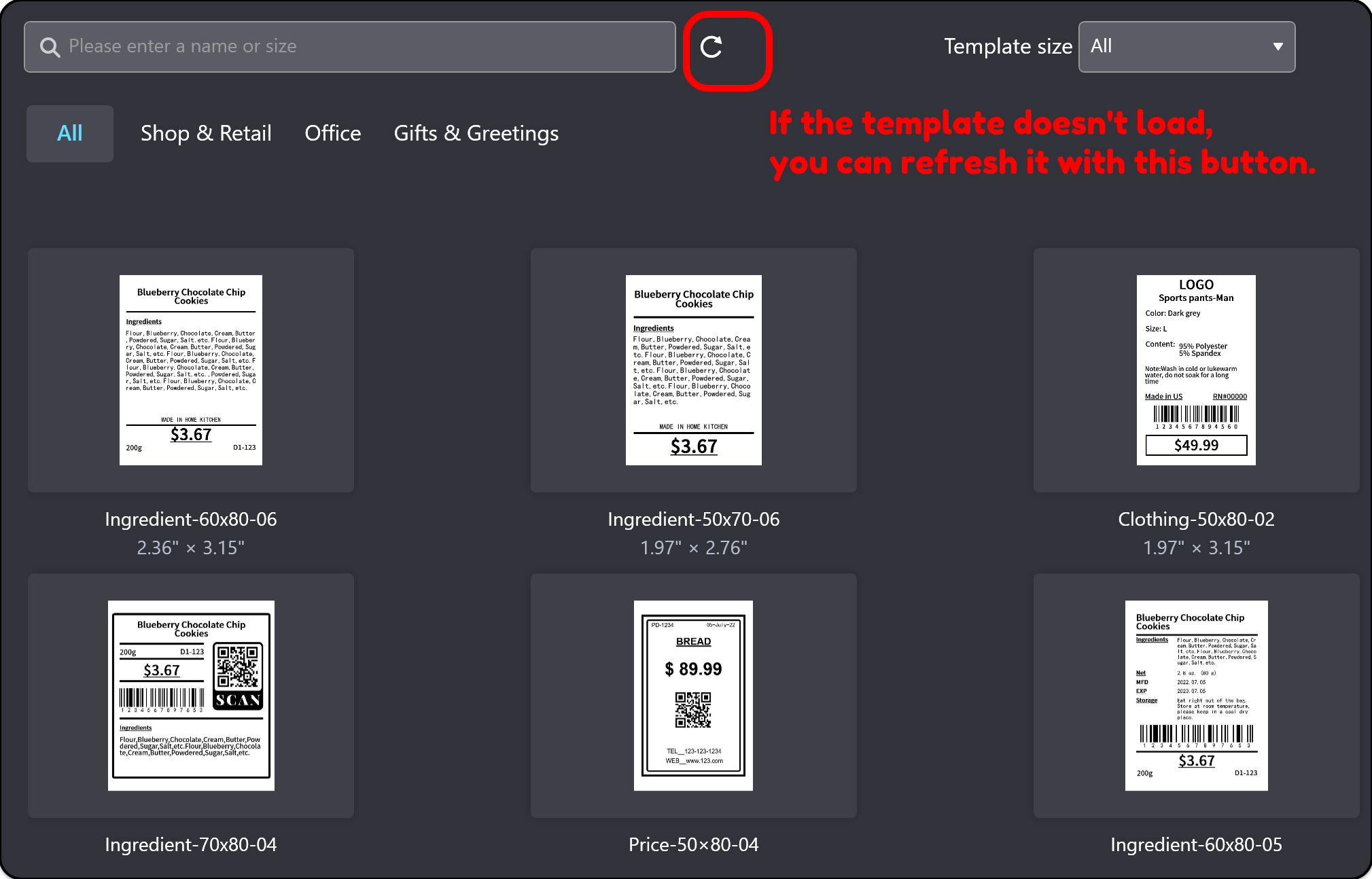

  4. PDF Print and Template Library:  Here you can directly print PDF files and call a large number of pre-defined templates!

Label Page and How to create a new label

Step1:  Click on "NEW" on the homepage and the Label Page will be open.


Step2: Confirm your label paper style, fill in the size

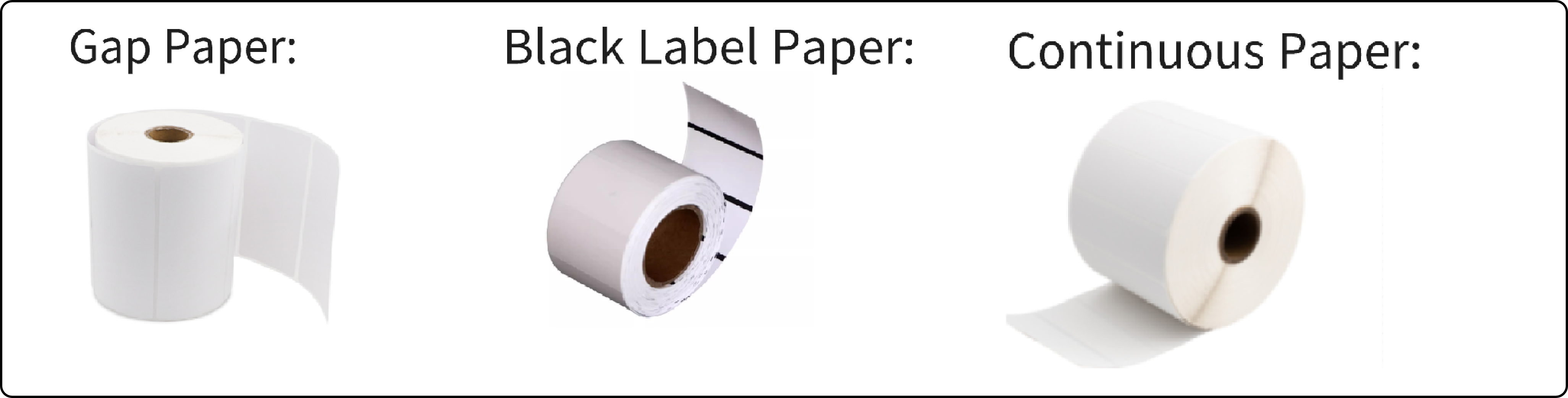

Note: The types of paper  are usually classified as follows :

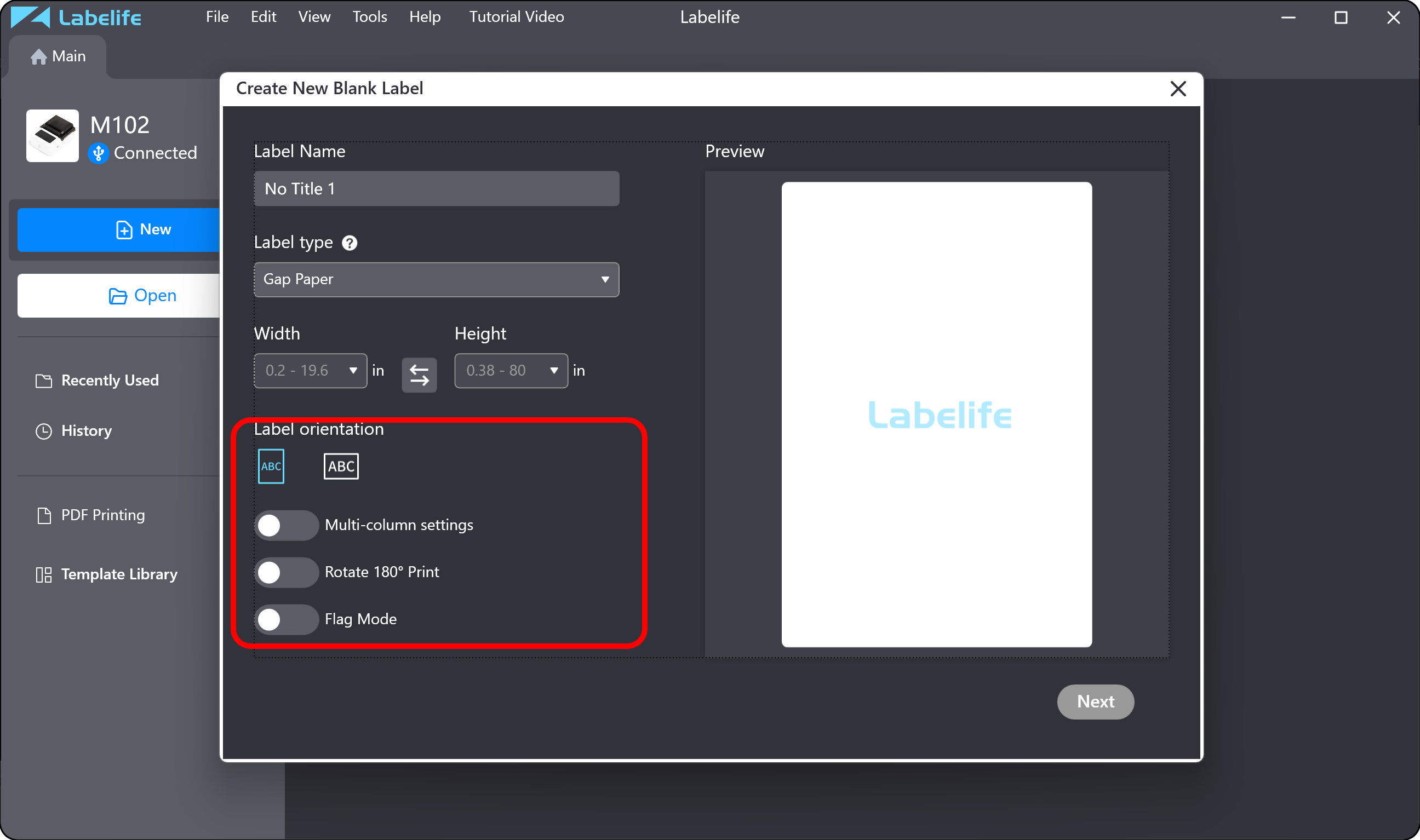

Step3:  Create special label as needed


Step4：Start designing your label

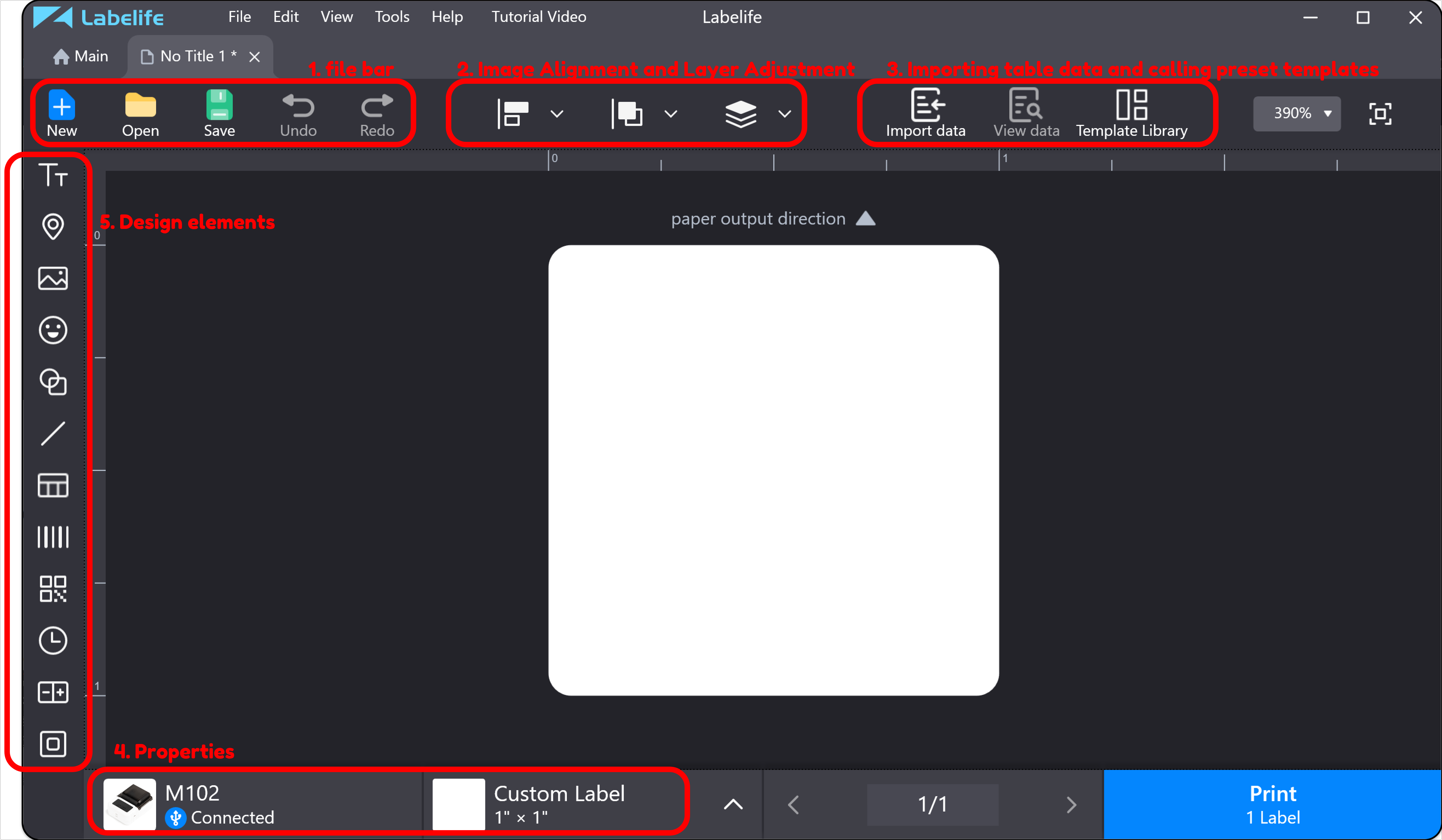

Design Page


file bar: Can be used to create or open new tabs and roll back editing actions
Image Alignment and Layer Adjustment
Importing table data and calling preset templates
Properties:  It can be used to check the printer type, change the label parameters
Design elements:  With twelve functions, you can insert text, images, 1D codes, 2D codes and other elements.
Function: Text, Adress, images, Icon, Shapes, Line, Table, Barcode, QR Code, Counter, Border

How to import data from a table and reference it in label

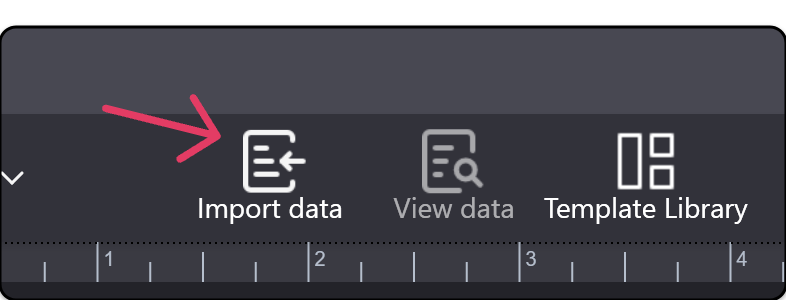

Step1： Click "Import data"


Step2: Importing table file


Step4: Select the data rows you need


Step5: Calling data on your label

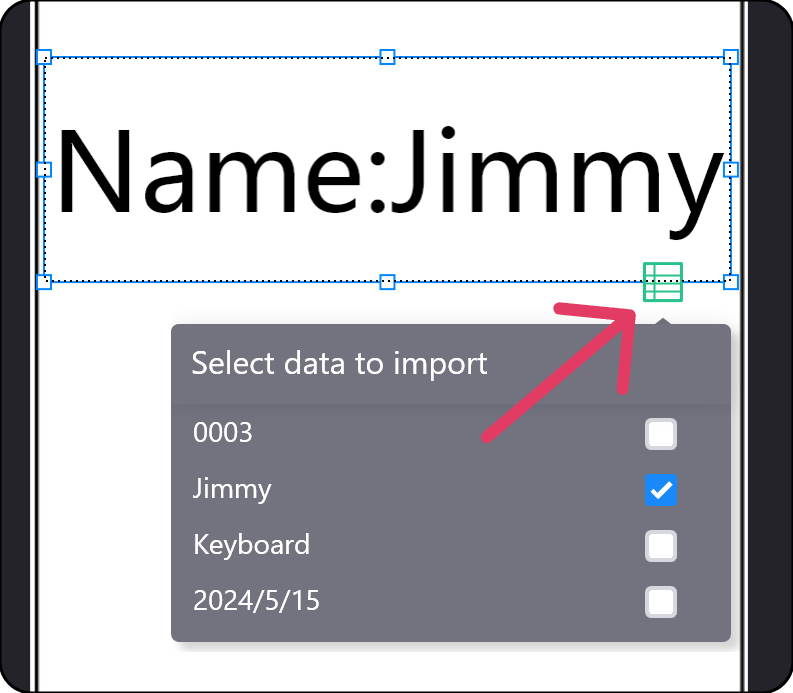

  1.  In the text we can select the data with this button

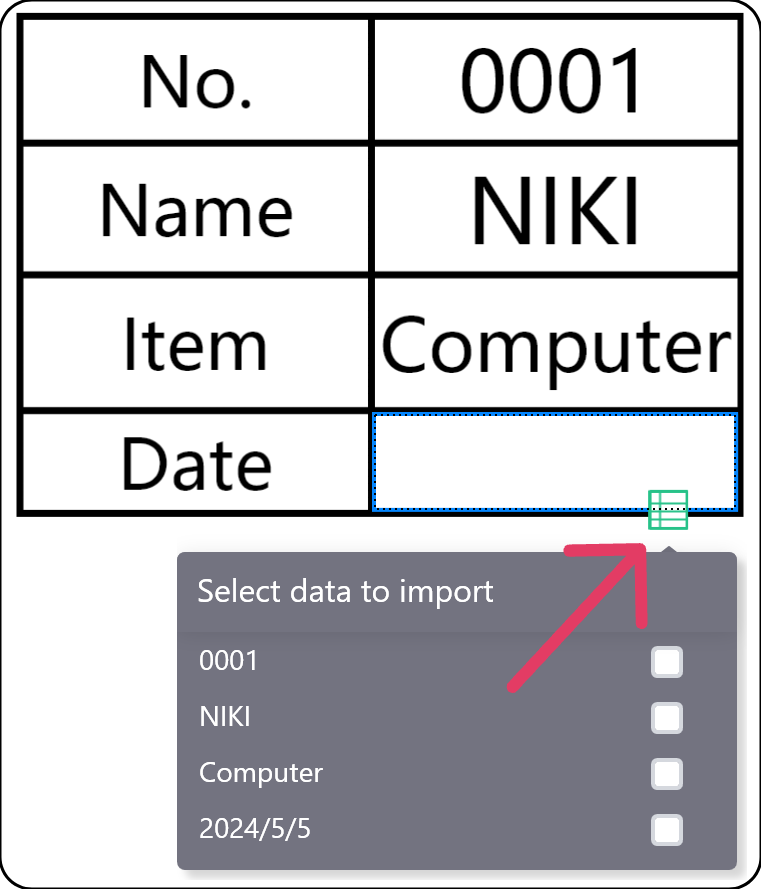

  1.  In the table we also can select the data with this button

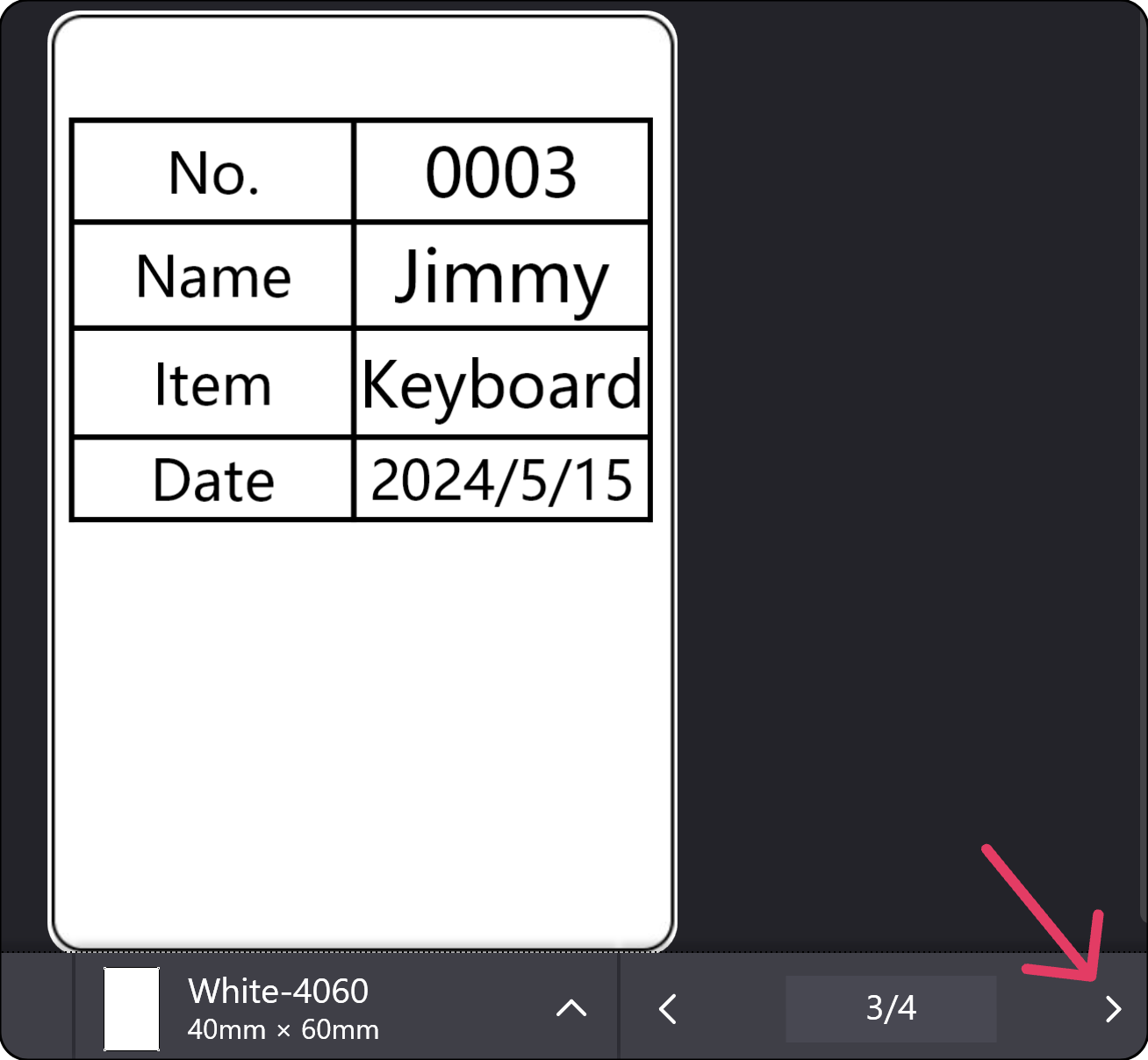

Step6:  Review data about different label

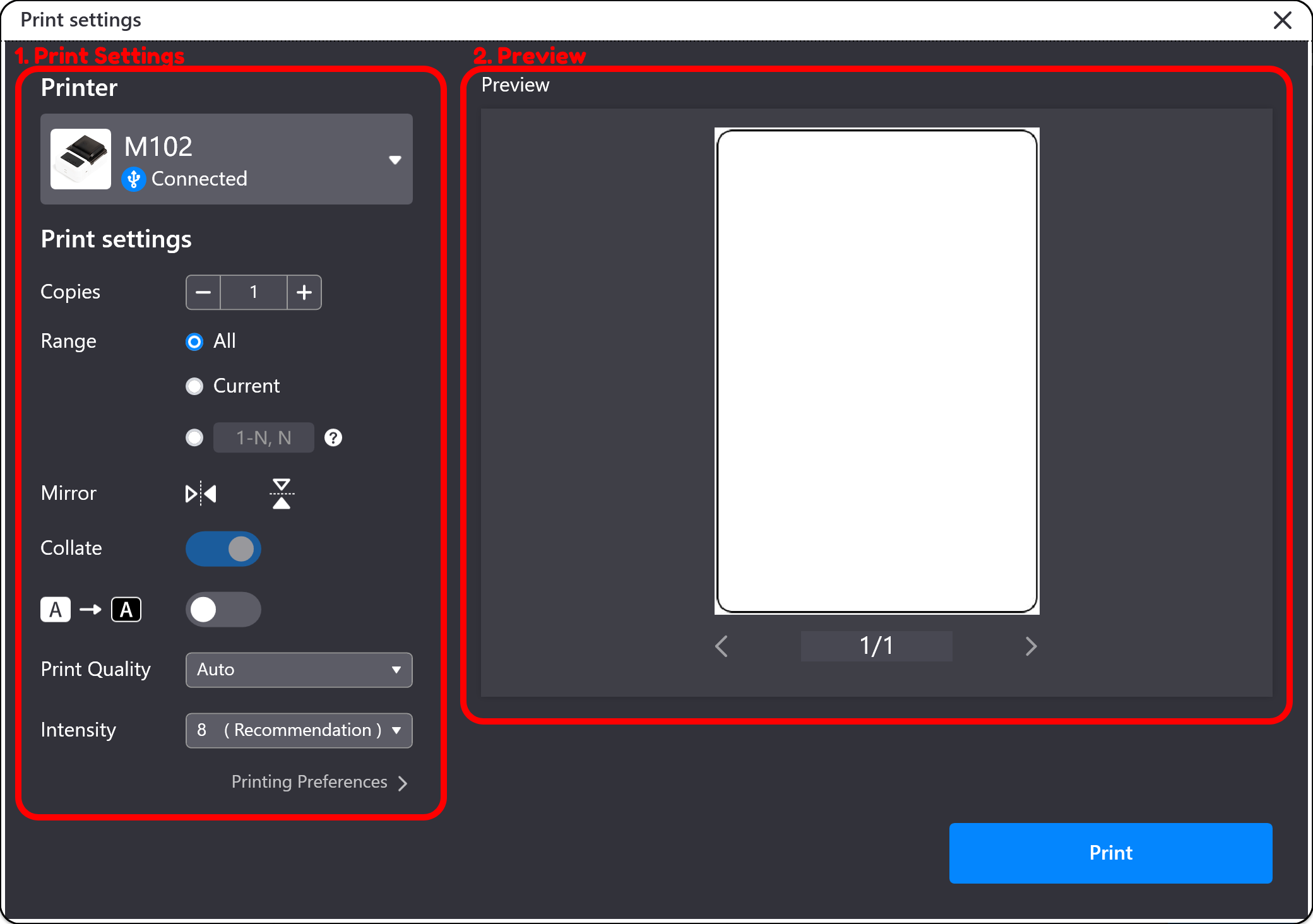

  1. Copies:  Number of copies of labels
  2. Range: What page labels need to be printed
  3. Mirror: Flip the image symmetrically
  4. Invert Colors: Swap the black and white of an image
  5. Print Quality: Choose from three modes - text, image or both - for improved print quality.
  6. Intensity:  The higher the value, the more intense the print colour
  7. Preview:  Print Preview
  8. Print: Use for print
